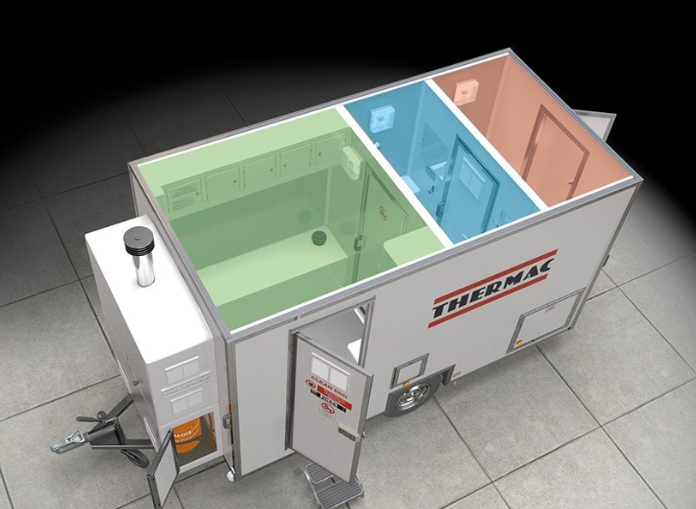

The unit consists of three key sections: the Clean End, the Shower Area and the Dirty End. For ease of use the LPG generator, gas bottles, waste pump and the waste water filter can be externally accessed via purpose-built hatches. Drain taps are also fitted at various points around the unit and are clearly marked for easy location. The unit comes with all necessary warning signs and the graphics can also be fully customised to a customer’s requirements

Clean End

• The lockable, vented external door leads into the Clean End which houses the 350 Litre capacity, onboard water tank. This tank also functions as a bench for added
user-comfort

• The 8 key-operated lockers each contain a power socket to facilitate the charging of spare RPE batteries

• The LPG boiler and fresh-water pump are situated in the forward compartment and can be accessed from the Clean End section

• For added peace of mind a carbon monoxide detector is also fitted as standard

• Standard fittings within the Clean End are a mirror, sink, hooks, oil-filled radiator and a documentation holder for all relevant unit certification

• A self-closing, gravity-vented door then leads into the Shower Area (Note: The fittings in this and other areas within the unit

Shower End

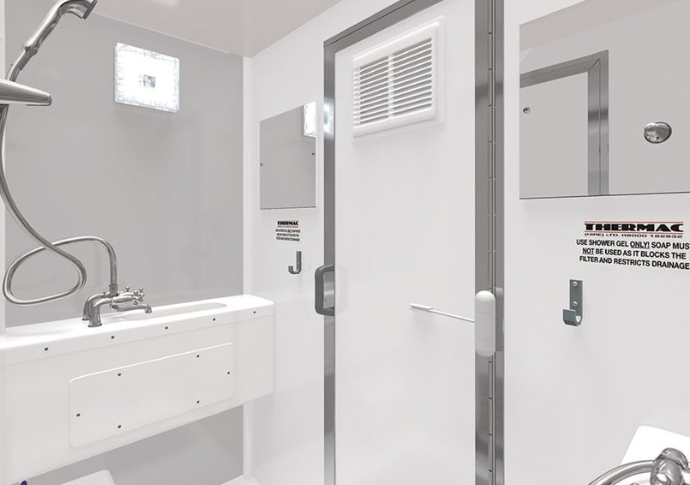

• The Shower Area incorporates two independent showers, mirrors, hooks and a light

• To ensure the unit can be effectively drained of all fresh-water, in preparation for freezing temperatures, it
incorporates 4 water-drain taps

• The next self-closing gravity-vented door then leads into
the Dirty End

Dirty End

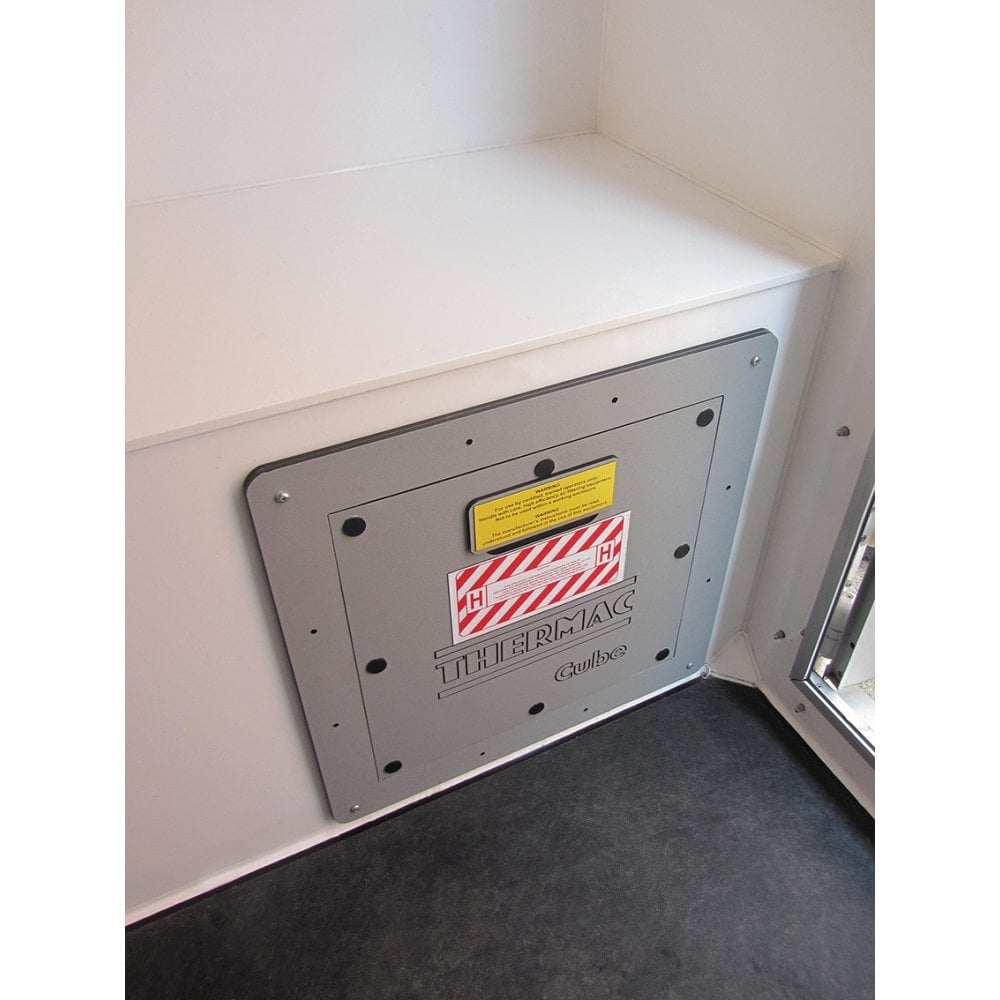

• The Dirty End houses two seating benches (one being located over the Negative Pressure Unit and the tubeheater), mirror, hooks and a light

• The self-closing door from the Dirty End incorporates an additional external aluminium frame to facilitate easy
connection to an enclosure

• Removable Negative Pressure Unit with real time digital flow monitor and H14 filtration for 99.995% efficiency

Dimensions

Internal Sizes:
Clean end – 1750mm x 1870mm
Shower area – 1750mm x 800mm
Dirty end – 1750mm x 900mm
