Description:

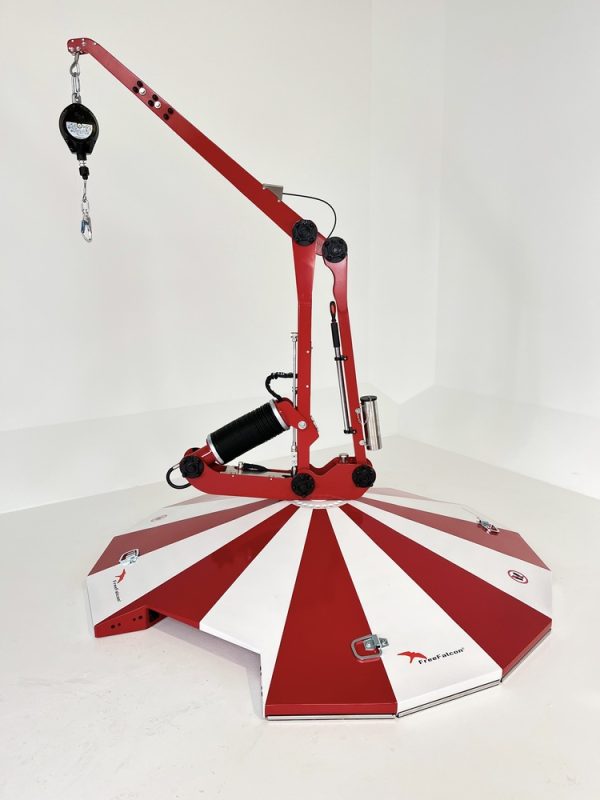

The FreeFalcon V21-1 is an advanced mobile fall protection anchor system designed to provide safe, reliable overhead anchorage when working at height. Engineered using the physical force of leverage combined with modern safety technology, it delivers exceptional fall protection without the need for permanent anchorage points.
Designed for use on smooth surfaces such as slab formwork, the FreeFalcon V21-1 offers outstanding mobility, 360° freedom of movement, and rapid deployment for construction and industrial applications. Its compact yet robust design allows easy transportation and repositioning on-site using standard lifting equipment.
Key Features
• Mobile overhead fall protection anchor system
• No permanent anchorage points required
• 360° freedom of movement for improved worker mobility
• Advanced swing fall reduction technology
• Suitable for smooth surfaces such as slab formwork
• Portable and easy to transport using pallet truck and crane
• Fast setup and repositioning on-site
• Designed for single-user fall protection
• Robust and stable construction for demanding environments
• Large working radius of up to 9 metres
• Integrated safety unit with automatic triggering system
• Built for construction, industrial, and high-access applications
• Engineered to meet strict international safety standards
Technical Specification
• Product Name: FreeFalcon V21-1 Mobile Fall Protection Anchor
• Article Number: 10001
• Working Radius: Up to 9.00 m
• Weight: 450 kg
• Anchor Point Height (Default Position): 235 cm
• Anchor Point Height (Safety Position): 115 cm
• Lowest Base Diameter: 208 cm
• Largest Base Diameter: 225 cm
• Dimensions: Max. 225 x 235 cm
• Anti-Slip Segments: 12 pieces
• Sliding Friction: 0.65 µ ±5%
• Pressure Force of Safety Unit: 29,050 N – 30,327 N
• Triggering Time of Safety Unit: 1.5 – 2.0 seconds
• Trigger Force of Safety Device: 1.1 – 1.5 kN
• Lashing Rings: 4 pieces (4,000 N each)
Applications
Suitable for use in:
• Construction sites
• High-rise building projects
• Industrial maintenance
• Slab formwork operations
• Bridge construction
• Temporary overhead anchorage applications
• Work at height where fixed anchorage is unavailable
Benefits
• Reduces installation time by eliminating multiple anchorage points
• Increases productivity and worker efficiency
• Improves mobility and comfort during work at height
• Enhances worker safety with advanced fall protection technology
• Ideal for projects requiring frequent repositioning of anchor systems
• Compact design suitable for restricted or confined work areas
Safety Information
• Designed for use on smooth, stable surfaces only
• Suitable for single-user operation
• Must be used as part of a complete certified fall arrest system
• Only available for sale within the EU
