Description:

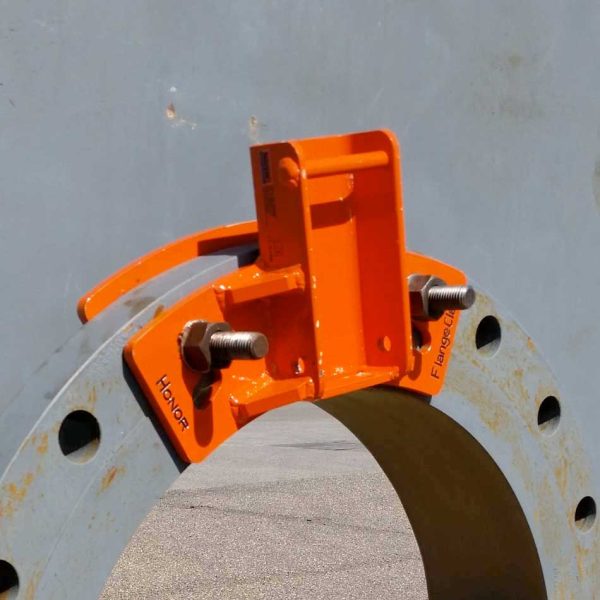

The Honor Flange Clamp is a specialised temporary anchorage solution designed to enable safe entry and rescue operations in confined spaces, particularly through horizontal manholes and vessel access points.
Developed in collaboration with end users facing challenges during shutdowns, maintenance and process plant operations, the Flange Clamp provides a practical solution where traditional anchor points are difficult or impossible to install. Its compact design addresses restricted spaces commonly found between vessel flanges, insulation and platform railings.
The system mounts quickly onto the flange using two bolts, keeping the access opening completely unobstructed. A modular intermediate bracket with integrated cable guide roller is then attached, allowing installation of the required rescue, fall protection or lifting device.
Key Features
• Temporary anchor point for confined space access and rescue
• Specifically designed for horizontal manholes and vessel entry applications
• Quick and simple installation using two-bolt mounting method
• Leaves the access opening completely unobstructed during operation
• Modular intermediate bracket with integrated cable guide roller
• Supports integration with fall protection and rescue equipment
• Compact build for restricted installation areas
• Designed for use by up to 2 users simultaneously
• Standard version suitable for ANSI and API 20” and 24” flanges
• Alternative flange dimensions available on request
Compatible Systems
• Fall protection systems
• Rescue winch systems
• Descent and evacuation devices
• Passenger winches
• Air winches and lifting equipment
• Rescue and retrieval systems
• Compatible with HONOR RescueSlide® for improved horizontal manhole entry and rescue
Applications
• Confined space entry and rescue
• Horizontal manhole access
• Vessel and reactor maintenance
• Process plant shutdowns and turnarounds
• Industrial maintenance and servicing
• Rescue and evacuation operations
• Petrochemical and manufacturing facilities
• Work at height safety systems
