Description:

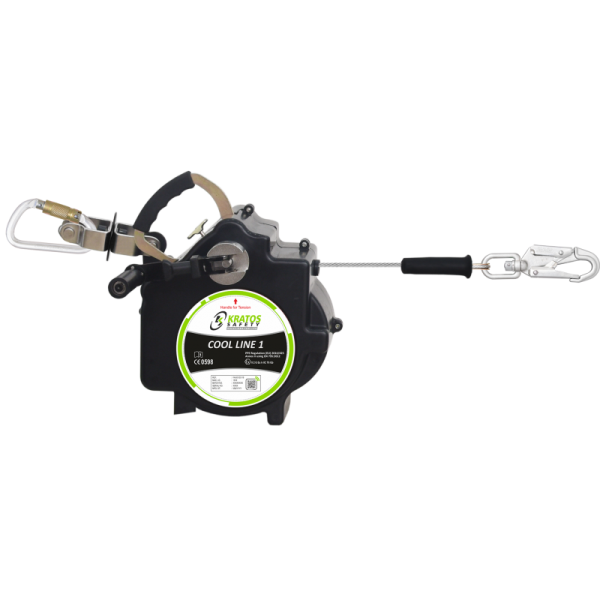

The COOL LINE 1 Retractable Temporary Horizontal Lifeline is a lightweight and easy-to-install fall protection system designed for safe horizontal movement at height. Featuring a retractable 6 mm galvanized steel wire rope with integrated winch system, it allows rapid installation, dismantling and relocation between work areas. Built with durable polymer casings and an integrated shock absorption mechanism, the system delivers reliable fall protection for industrial, construction and hazardous ATEX environments.
Key Features
• Retractable temporary horizontal lifeline system
• Maximum working length of 18 m
• Lightweight and ready-to-use design for quick deployment
• Integrated winch system allows fast installation and dismantling
• Durable high-strength polymer casing construction
• Carrying handle fitted with integrated tension indicator
• Inbuilt shock absorption mechanism reduces impact forces during fall arrest
• Swivel snap hook prevents twisting of the wire rope during use
• Suitable for simultaneous use by 1 or 2 users
• Approved for use in ATEX Zone 1 hazardous environments
• High strength 6 mm galvanized steel wire rope
Technical Specification
• Product Name: COOL LINE 1
• Reference: FA6003318
• Lifeline Type: Retractable temporary horizontal lifeline
• Maximum Length: 18 m
• Weight: 14.39 kg
• Wire Rope Diameter: 6 mm
• Wire Rope Material: Galvanized steel
• Casing Material: Polymer
• Connector Material: Steel
Supplied Connectors
• 1 x steel swivel snap hook with fall indicator
• Automatic locking opening: 21 mm
• 1 x steel screw-locking karabiner
• Karabiner opening: 17 mm
Performance & Compliance
• Static Strength (EN 795:2012): 13 kN
• Minimum Breaking Strength: 22 kN
• PPE Classification: PPE
• ATEX Protection: Suitable for ATEX Zone 1 environments
• Standard: EN 795:2012 Type C
• Additional Standard: TS 16415:2013 Type C
• Regulation Compliance: PPE Regulation (EU) 2016/425 Annex II
• HS Code: 84798997
Applications
• Temporary horizontal lifeline systems
• Construction and industrial maintenance
• Hazardous ATEX work environments
• Structural steel and access work
• Multi-user fall protection systems
• Elevated work area movement and restraint
• Temporary safety line installations
