Description:

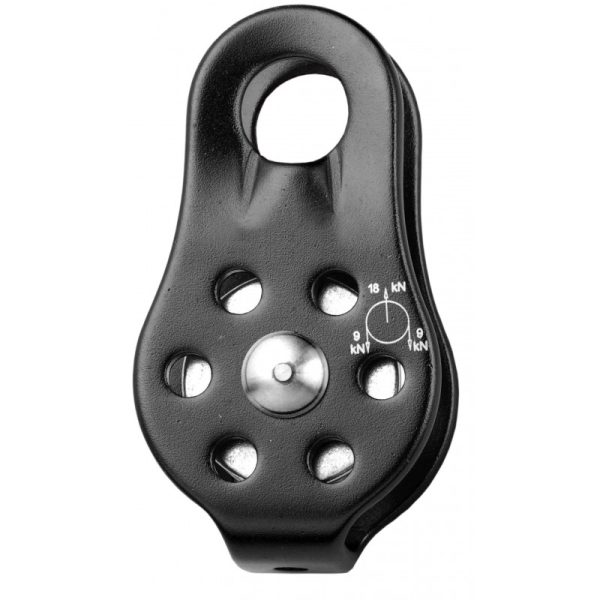

The Kratos Safety FA 7000800 Pulley is a compact, lightweight pulley designed for use with compatible rope systems.
Manufactured from aluminium, the pulley features an aluminium sheave with a diameter of 21 mm and uses a dry bearing system. Its low weight of just 0.08 kg makes it easy to transport and incorporate into suitable rope systems.
The FA 7000800 is suitable for use with PES rope from 9–12 mm diameter and has a Minimum Breaking Strength (MBS) of 18 kN with a stated working load of 5 kN.

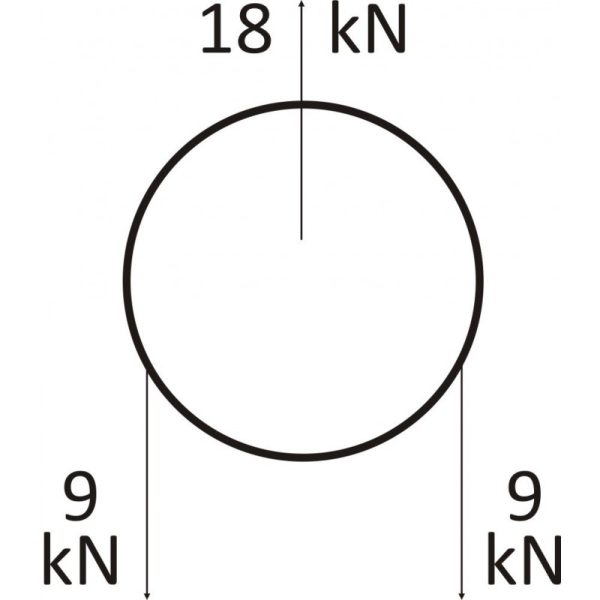

The load diagram shown on page 1 of the manufacturer datasheet illustrates an 18 kN central load with 9 kN indicated on each side of the pulley.

Key Features
• Aluminium construction
• Aluminium sheave
• Sheave diameter: 21 mm
• Dry bearing system
• Suitable for PES rope from 9–12 mm diameter
• Minimum Breaking Strength: 18 kN
• Working Load: 5 kN
• Lightweight construction
• Weight: 0.08 kg
• Compact design for easy transport and handling
