Description:

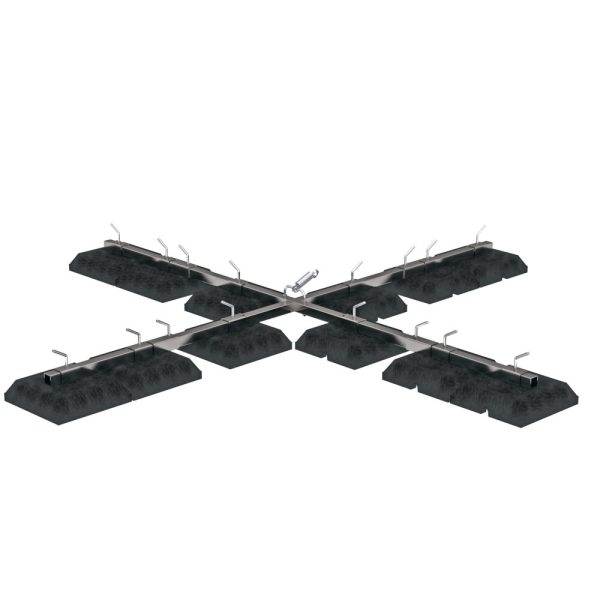

The IM 101 Mobile Man Anchor is a portable fall protection anchor point designed for safe use on flat roofs with adequate load-bearing capacity. Constructed from hot-dip galvanized steel, it provides a durable and reliable anchorage solution without the need for permanent installation.
Key Features
• Portable anchor point for flat roof applications
• Complies with EN 795/E
• Constructed from hot-dip galvanized steel
• No permanent fixing required
• Designed for easy positioning and setup
• Stable design using modular weight system
Construction
• Main anchor cross structure
• 12 x rubber counterweights for stability
• Designed to sit flush and align with roof surface
Technical Specification
• Material: Hot-dip galvanized steel
• Overall Dimensions: 1550 x 1550 x 260 mm
• Total Weight: 220 kg
Counterweights:
• Dimensions (each): 400 x 400 x 200 mm
• Weight (each): 16 kg
• Quantity: 12 pieces
Applications
• Flat roof work and maintenance
• Fall protection systems
• Construction and refurbishment projects
• Temporary access and safety setups
