Description:

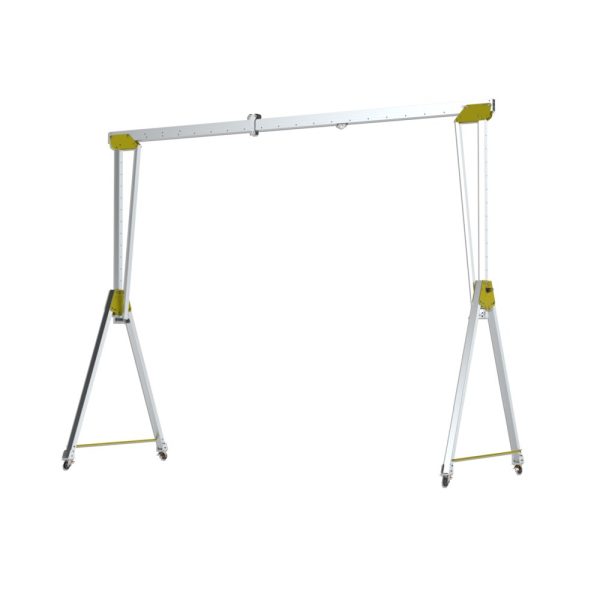

The LSB Series Aluminium Gantry Crane is a versatile, modular lifting system designed for demanding industrial and confined space applications. Manufactured from lightweight high-strength aluminium, it offers excellent portability while maintaining robust lifting performance. Its fully adjustable modular design allows quick assembly and flexible configuration, making it ideal for a wide range of site conditions without the need for specialised tools.
Key Features
• Modular aluminium gantry crane system for flexible lifting applications
• Lightweight construction for easy transport, handling and deployment
• Fully adjustable design for rapid on-site configuration
• Tool-free assembly for efficient setup and dismantling
• Configurable beam lengths to suit different working environments
• Suitable for confined space and industrial lifting operations
• Compatible with trolley system for controlled load movement
• High versatility for both light and heavy-duty lifting tasks
Technical Specification
• Product Name: LSB Series Aluminium Gantry Crane
• Beam Length: 2 m – 7 m
• Working Load Limit (WLL): 500 kg – 2000 kg (depending on configuration)
• Design Type: Fully modular adjustable system
• Trolley: Available / optional depending on configuration
• Material: High-strength aluminium
Applications
• Confined space lifting operations
• Drainage wells and underground access areas
• Reservoir and tank maintenance
• Silos and industrial storage facilities
• Rooftop lifting and maintenance work
• Lift shaft installations and servicing
• Wastewater treatment facilities
• General industrial lifting applications
