Description:

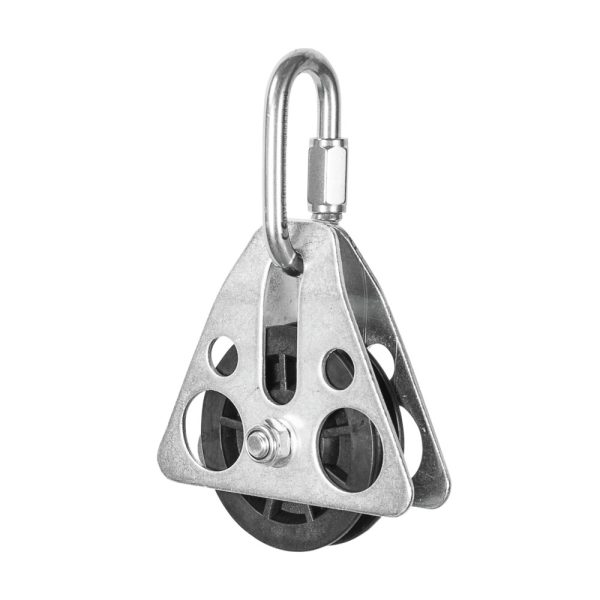

The Protekt PL101 Pulley is a robust steel pulley designed for use with compatible wire and rope systems.
Manufactured from galvanised steel, the PL101 combines high strength with a compact and durable construction. It has a Working Load Limit (WLL) of 10 kN, a minimum breaking strength of 40 kN, and a stated working load of 1000 kg, with a 5:1 safety factor.
The pulley is suitable for use with wire ropes from 6–12 mm diameter and textile ropes from 8–12 mm diameter, making it adaptable to a range of compatible rope systems.
Its compact dimensions of 133 × 56 × 128 mm and low weight of approximately 0.64 kg make the PL101 easy to transport and incorporate into appropriate rope and lifting arrangements. The supplied version is a pulley without rope.

Key Features
• Working Load Limit: 10 kN
• Working load: 1000 kg
• Minimum Breaking Strength: 40 kN
• Safety factor: 5:1
• Suitable for 6–12 mm wire rope
• Suitable for 8–12 mm textile rope
• Galvanised steel construction
• Compact dimensions: 133 × 56 × 128 mm
• Weight: approximately 0.6415 kg
• Supplied as pulley without rope
