Description:

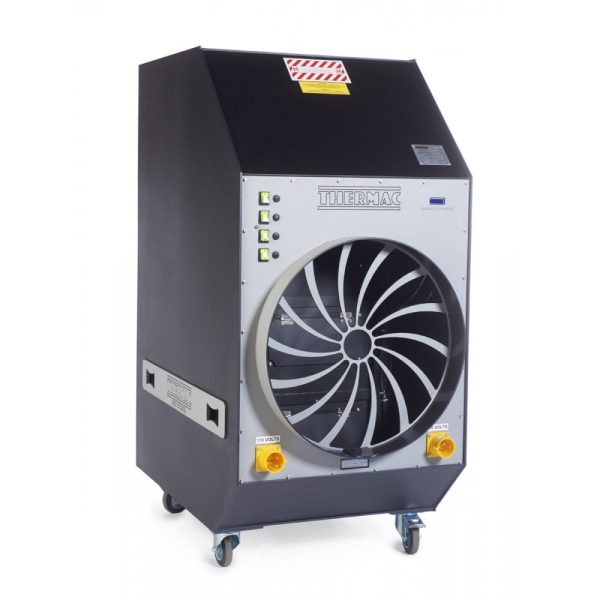

High-performance and designed for large-scale containment and filtration projects, the Thermac M-Series NPU 10000 delivers exceptional airflow for demanding environments. With a nominal airflow of 10,000 m³/h, it is the ideal solution for larger projects while remaining compact enough for easy transportation and movement around site. Equipped with a self-calibrating digital airflow monitor, the unit provides accurate real-time airflow readings with minimal maintenance requirements. Constructed from durable ABS plastic and fitted with heavy-duty castors, it offers both robustness and ease of handling.
Key Features
• High airflow output: 10,000 m³/h
• Self-calibrating digital airflow monitor
• Real-time airflow display with auto-zero function every 10 minutes
• HEPA H14 filtration (99.995% efficiency)
• 2-stage filtration system
• Four individually switched motors for flexible airflow control
• Clip-free magnetic transit cover
• Uses industry-standard consumables
• Recessed handles and heavy-duty castors for easier movement
• Optional double spigot plate for use with two roving heads
• Complies with BS 8520.2:2009
• Supplied with 12-month limited warranty, 6-month D.O.P. and electrical test certificates
Specifications
• Construction: ABS Plastic
• Voltage: 110 / 230 V
• Power: 3520 x 2 W / 3680 x 2 W
• Current: 32 x 2 Amps / 16 x 2 Amps
• Airflow: 10,000 m³/h
• Noise Level: 79.5 dB
• Weight: 150 kg
• Dimensions: 704 x 1010 x 1500 mm
• HEPA Filters: 610 x 610 x 292 mm (x2) (H14)
• Pre-Filters: 24 x 24 x 4 (G4) (x2)
• Ducting Size: 600 mm
• Filtration: 2-Stage Filtration
