Description:

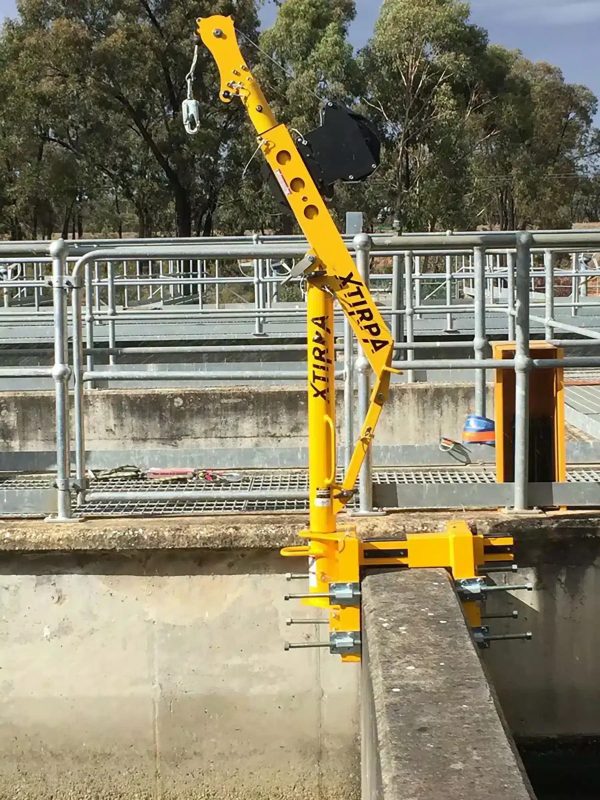

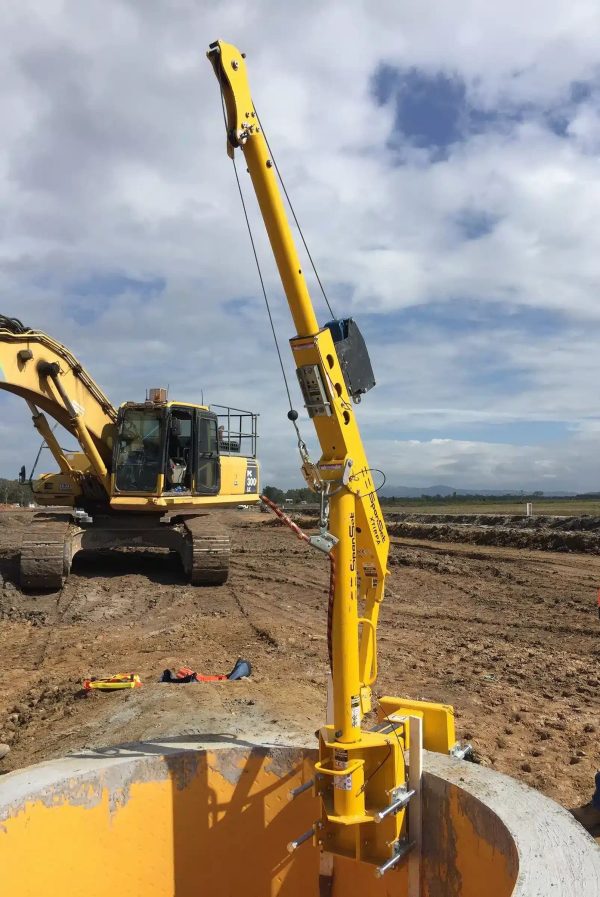

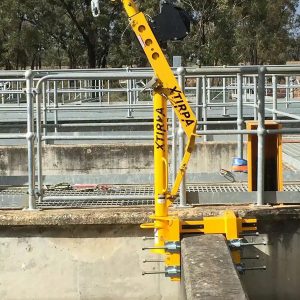

The Xtirpa 610mm Wall Mount Clamp Davit System is a portable confined space access, rescue and retrieval system available to hire from Trade Safety Ltd in a range of clamp and davit configurations.
The system can be supplied with either the Xtirpa IN-2210 Davit Arm and IN-2003 Mast or the combined IN-2483 Arm and Mast assembly.
A range of Xtirpa trench clamp options is available to accommodate different mounting widths and site requirements. Depending on the selected configuration, clamp options include the IN-2021, IN-2315, IN-2482, IN-2008, IN-2168 and IN-2125, providing mounting ranges from 0 mm up to 1267 mm.
Twelve Xtirpa 610mm Wall Mount Clamp Davit System configurations are available for hire, allowing the most appropriate arm, mast and clamp arrangement to be selected for the application.

Available Hire Configurations:
HIREX610WMCDS1 – IN-2210 Davit Arm / IN-2003 Mast / IN-2021 Clamp
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2021 – Trench Clamp, 0–76 mm
HIREX610WMCDS2 – IN-2210 Davit Arm / IN-2003 Mast / IN-2315 Clamp
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2315 – Trench Clamp, 51–127 mm
HIREX610WMCDS3 – IN-2483 Combined Arm & Mast / IN-2021 Clamp
Includes:
• IN-2483 – Combined Xtirpa Arm & Mast, 1-Piece Assembly
• IN-2021 – Trench Clamp, 0–76 mm
HIREX610WMCDS4 – IN-2483 Combined Arm & Mast / IN-2315 Clamp
Includes:
• IN-2483 – Combined Xtirpa Arm & Mast, 1-Piece Assembly
• IN-2315 – Trench Clamp, 51–127 mm
HIREX610WMCDS5 – IN-2210 Davit Arm / IN-2003 Mast / IN-2482 Clamp
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2482 – Trench Clamp, 51–1267 mm
HIREX610WMCDS6 – IN-2210 Davit Arm / IN-2003 Mast / IN-2008 Clamp
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2008 – Trench Clamp, 152–400 mm
HIREX610WMCDS7 – IN-2210 Davit Arm / IN-2003 Mast / IN-2168 Clamp
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2168 – Trench Clamp, 305–610 mm
HIREX610WMCDS8 – IN-2210 Davit Arm / IN-2003 Mast / IN-2125 Clamp
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2125 – Trench Clamp, 610–1147 mm
HIREX610WMCDS9 – IN-2483 Combined Arm & Mast / IN-2482 Clamp
Includes:
• IN-2483 – Combined Xtirpa Arm & Mast, 1-Piece Assembly
• IN-2482 – Trench Clamp, 51–1267 mm
HIREX610WMCDS10 – IN-2483 Combined Arm & Mast / IN-2008 Clamp
Includes:
• IN-2483 – Combined Xtirpa Arm & Mast, 1-Piece Assembly
• IN-2008 – Trench Clamp, 152–400 mm
HIREX610WMCDS11 – IN-2483 Combined Arm & Mast / IN-2168 Clamp
Includes:
• IN-2483 – Combined Xtirpa Arm & Mast, 1-Piece Assembly
• IN-2168 – Trench Clamp, 305–610 mm
HIREX610WMCDS12 – IN-2483 Combined Arm & Mast / IN-2125 Clamp
Includes:
• IN-2483 – Combined Xtirpa Arm & Mast, 1-Piece Assembly
• IN-2125 – Trench Clamp, 610–1147 mm

Key Features
• Xtirpa 610mm Wall Mount Clamp Davit System available for hire
• Twelve hire configurations available
• Choice of IN-2210 Davit Arm with separate IN-2003 Mast
• Alternative IN-2483 combined Arm and Mast configuration available
• Multiple trench clamp sizes available for different mounting requirements
• IN-2021 Trench Clamp with 0–76 mm mounting range
• IN-2315 Trench Clamp with 51–127 mm mounting range
• IN-2482 Trench Clamp with 51–1267 mm mounting range
• IN-2008 Trench Clamp with 152–400 mm mounting range
• IN-2168 Trench Clamp with 305–610 mm mounting range
• IN-2125 Trench Clamp with 610–1147 mm mounting range
• Modular system allows the appropriate davit and clamp configuration to be selected for the application
• Portable arrangement suitable for temporary site deployment
• Suitable for confined space access, rescue and retrieval applications

Applications
• Confined space entry and rescue
• Confined space access systems
• Personnel retrieval and recovery
• Wall-mounted davit applications
• Trench and excavation access
• Temporary davit installations
• Water and wastewater facilities
• Tanks, chambers and access openings
• Utility and infrastructure projects
• Industrial maintenance and servicing
• Construction and civil engineering environments
• Work-at-height safety applications
For assistance selecting the correct Xtirpa 610mm Wall Mount Clamp Davit System configuration for your application, contact Trade Safety Ltd. Our team can advise on the most appropriate hire setup based on the required clamp range, mounting arrangement and davit configuration.
