Description:

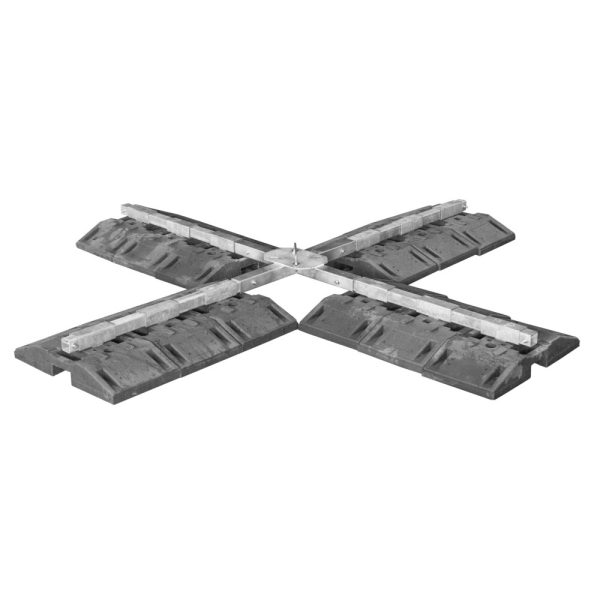

The IM 200 Mobile Man Anchor is a portable and collapsible anchorage solution designed to provide safe working conditions on flat roof surfaces without penetrating the waterproof membrane.
Its modular design allows for easy installation and removal, making it ideal for temporary works while maintaining the integrity of the roof structure.

Key Features
• Portable and collapsible anchorage system
• No roof penetration required – protects waterproofing
• Modular design for easy transport and assembly
• Large footprint for optimal load distribution
• Suitable for temporary safety setups
• Durable construction using rubber, stainless steel and hot galvanised steel

Surface Compatibility
• Suitable for use on:
• Bitumen membranes
• PVC membranes
• Maximum surface inclination: 5°

Technical Specification
• Total Weight: 367 kg
• Unit Weight (each): 28 kg
• Number of Weights: 12 pieces
Materials:
• Rubber
• Stainless steel
• Hot galvanised steel

Applications
• Flat roof maintenance and access
• Fall protection systems
• Construction and refurbishment works
• Temporary anchorage solutions
