Description:

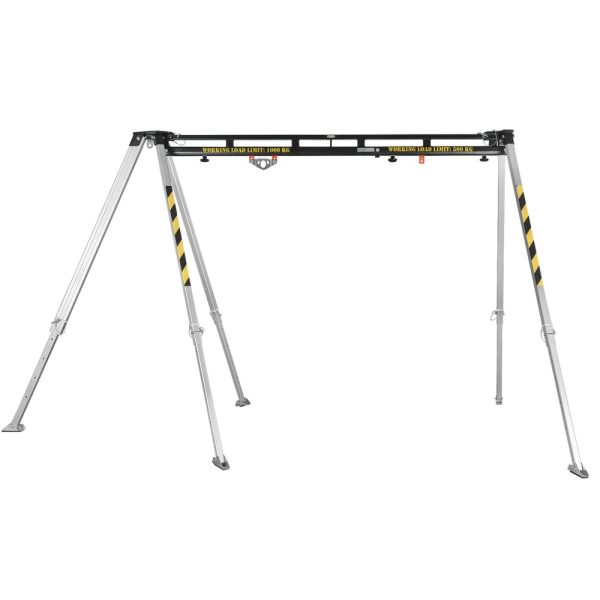

Designed for demanding confined space operations, the TM 12 SPIDER provides a secure and stable solution for lifting personnel and materials.
Suitable for use in wells, tanks, silos and drainage systems, it supports safe lifting and lowering when used with appropriate fall protection equipment.
Featuring a six-leg design with multiple anchorage points, it offers excellent stability and flexibility for complex access and rescue setups.
Designed for use with RUP series winches and rescue devices, it delivers reliable performance across a wide range of lifting and recovery applications.

Key Features

• Six-leg (hexapod) design for enhanced stability
• 6 anchorage points (2 movable, 4 fixed)
• Suitable for up to 2 users
• Maximum load capacity: 1000kg
• Compatible with RUP winches (WLL 1000kg)
• Compatible with RUP rescue devices (WLL 200kg)
• Height adjustment: 1.39m – 2.21m
• Mounting diameter: Ø150 – 223mm
• Aluminium legs with stainless steel head (powder coated)
• Galvanised steel feet and chain
• Weight: approx. 72kg
• Optional RFID/NFC tagging available
