Description:
The Xtirpa 610mm Counterweight Davit System is a portable confined space access, rescue and retrieval system available to hire from Trade Safety Ltd in a range of configurations.
Built around the Xtirpa IN-2210 Davit Arm and IN-2003 Mast, the system can be configured with either a 610 mm or 1524 mm T-Base, with optional extension post arrangements and a choice of wheeled or static counterweight trolley.
The counterweight design provides a versatile solution where a permanently installed davit base is not available or suitable. Depending on the selected configuration, the system uses between 8 and 20 individual 23 kg counterweights.

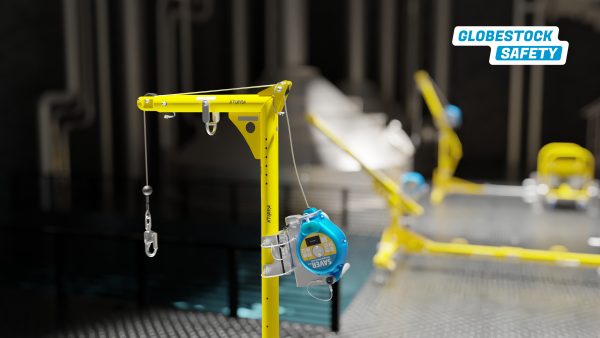

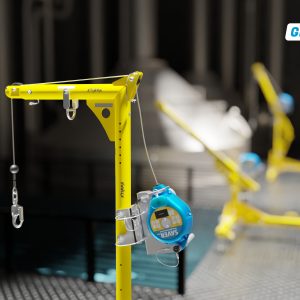

The IN-2210 Davit Arm is adjustable from 381 mm to 610 mm and is equipped with mounting brackets for a self-retracting lifeline and winch. The arm also incorporates an integrated anchor point and is manufactured from lightweight aluminium for easier transportation, assembly and deployment on site.
Eight counterweight davit configurations are available for hire, allowing the system to be selected according to the required T-Base width, trolley type and extension arrangement.
Available Hire Configurations:

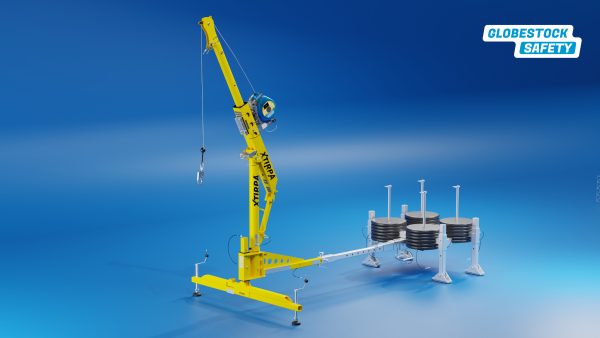

HIREX610CWDS1 – 1524 mm T-Base / Wheeled Trolley / Extension Post
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2204 – T-Base 1524 mm Wide
• A2126-69 – Extension Post
• A2126-38 – Adapter
• IN-2525 – Wheeled Counterweight Trolley
• P2525-017 – 8 × 23 kg Counterweights

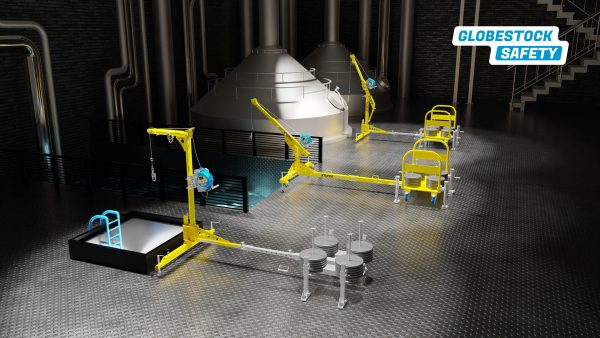

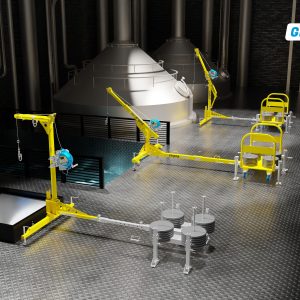

HIREX610CWDS2 – 1524 mm T-Base / Static Cart / Extension Post
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2204 – T-Base 1524 mm Wide
• A2126-69 – Extension Post
• A2126-38 – Adapter
• A2305-90 – Static Counterweight Cart
• P2525-017 – 12 × 23 kg Counterweights

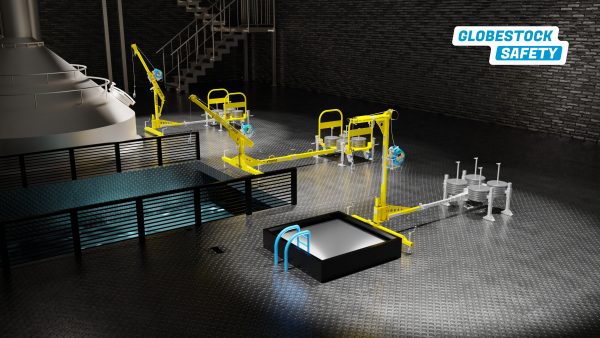

HIREX610CWDS3 – 1524 mm T-Base / Wheeled Trolley
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2204 – T-Base 1524 mm Wide
• A2126-38 – Adapter
• IN-2525 – Wheeled Counterweight Trolley
• P2525-017 – 16 × 23 kg Counterweights
HIREX610CWDS4 – 1524 mm T-Base / Static Cart
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2204 – T-Base 1524 mm Wide
• A2126-38 – Adapter
• A2305-90 – Static Counterweight Cart
• P2525-017 – 20 × 23 kg Counterweights
HIREX610CWDS5 – 610 mm T-Base / Wheeled Trolley / Extension Post
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2126 – T-Base 610 mm Wide
• A2126-69 – Extension Post
• A2126-38 – Adapter
• IN-2525 – Wheeled Counterweight Trolley
• P2525-017 – 8 × 23 kg Counterweights
HIREX610CWDS6 – 610 mm T-Base / Wheeled Trolley
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2126 – T-Base 610 mm Wide
• A2126-38 – Adapter
• IN-2525 – Wheeled Counterweight Trolley
• P2525-017 – 16 × 23 kg Counterweights
HIREX610CWDS7 – 610 mm T-Base / Static Cart / Extension Post
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2126 – T-Base 610 mm Wide
• A2126-69 – Extension Post
• A2126-38 – Adapter
• A2305-90 – Static Counterweight Cart
• P2525-017 – 12 × 23 kg Counterweights
HIREX610CWDS8 – 610 mm T-Base / Static Cart
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2126 – T-Base 610 mm Wide
• A2126-38 – Adapter
• A2305-90 – Static Counterweight Cart
• P2525-017 – 20 × 23 kg Counterweights
Key Features
• Portable Xtirpa counterweight davit system available for hire
• Eight system configurations available
• Suitable for confined space access, rescue and retrieval applications
• IN-2210 Davit Arm adjustable from 381 mm to 610 mm
• Choice of 610 mm or 1524 mm T-Base configurations
• Available with or without A2126-69 Extension Post
• Choice of IN-2525 wheeled counterweight trolley or A2305-90 static counterweight cart
• Counterweight configurations from 8 to 20 individual 23 kg weights
• IN-2210 Davit Arm equipped with brackets for self-retracting lifeline and winch installation
• Integrated 22 kN anchor point on the IN-2210 Davit Arm
• Lightweight aluminium davit arm construction
• Portable system designed for transport and deployment across different work locations
• Multiple configurations allow the most suitable system to be selected for the individual application
Applications
• Confined space entry and rescue
• Confined space access systems
• Personnel retrieval and recovery
• Fall protection applications
• Water and wastewater facilities
• Tanks, chambers and access openings
• Utility and infrastructure projects
• Industrial maintenance and servicing
• Construction and civil engineering environments
• Temporary work sites where a permanent davit base is not available
For assistance selecting the correct Xtirpa counterweight davit configuration for your application, contact Trade Safety Ltd. Our team can advise on the most appropriate hire setup based on the required base width, trolley arrangement and extension configuration.
