Description:

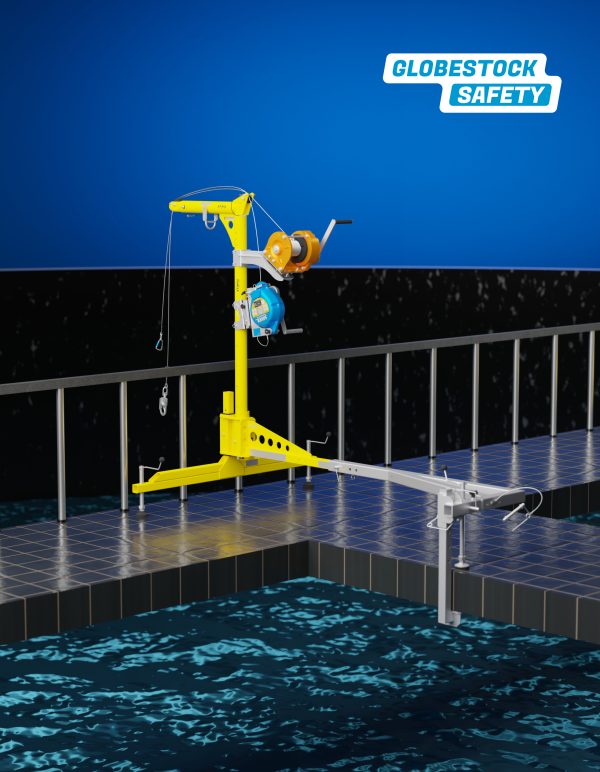

The Xtirpa 610mm J-Clamp Davit System is a portable confined space access, rescue and retrieval system available to hire from Trade Safety Ltd in two configurations.
Built around the Xtirpa IN-2210 Davit Arm and IN-2003 Mast, the system incorporates the A2126-21 Clamp together with a choice of two T-Base widths.
Depending on the selected configuration, the system can be supplied with either a 1524 mm wide T-Base or a more compact 610 mm wide T-Base, allowing the most appropriate setup to be selected according to the available working area and site requirements.
The IN-2210 Davit Arm is adjustable from 381 mm to 610 mm and is equipped with brackets for a self-retracting lifeline and winch. The arm also incorporates an integrated 22 kN anchor point for fall protection applications.
Two Xtirpa 610mm J-Clamp Davit System configurations are available for hire.
Available Hire Configurations:
HIREX610JCDS1 – 1524 mm T-Base / J-Clamp
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2240 – T-Base, 1524 mm Wide
• A2126-21 – Clamp
HIREX610JCDS2 – 610 mm T-Base / J-Clamp
Includes:
• IN-2210 – Xtirpa Davit Arm
• IN-2003 – Mast
• IN-2126 – T-Base, 610 mm Wide
• A2126-21 – Clamp
Key Features
• Xtirpa 610mm J-Clamp Davit System available for hire
• Two hire configurations available
• IN-2210 Davit Arm included in both configurations
• IN-2003 Mast included in both configurations
• A2126-21 Clamp included in both configurations
• Choice of 1524 mm or 610 mm T-Base arrangement
• IN-2210 Davit Arm adjustable from 381 mm to 610 mm
• Davit arm equipped with brackets for self-retracting lifeline and winch installation
• Integrated 22 kN anchor point on the IN-2210 Davit Arm
• Portable system suitable for temporary site deployment
• Two T-Base widths allow the most suitable configuration to be selected for the available working area
• Modular arrangement suitable for confined space access, rescue and retrieval applications
Applications
• Confined space entry and rescue
• Confined space access systems
• Personnel retrieval and recovery
• J-Clamp davit applications
• Temporary davit installations
• Water and wastewater facilities
• Tanks, chambers and access openings
• Utility and infrastructure projects
• Industrial maintenance and servicing
• Construction and civil engineering environments
• Work-at-height safety applications
• Sites where a temporary clamp-mounted davit arrangement is required
For assistance selecting the correct Xtirpa 610mm J-Clamp Davit System configuration for your application, contact Trade Safety Ltd. Our team can advise on the most appropriate hire setup based on the required T-Base width, available working area and clamp arrangement.
