Description:

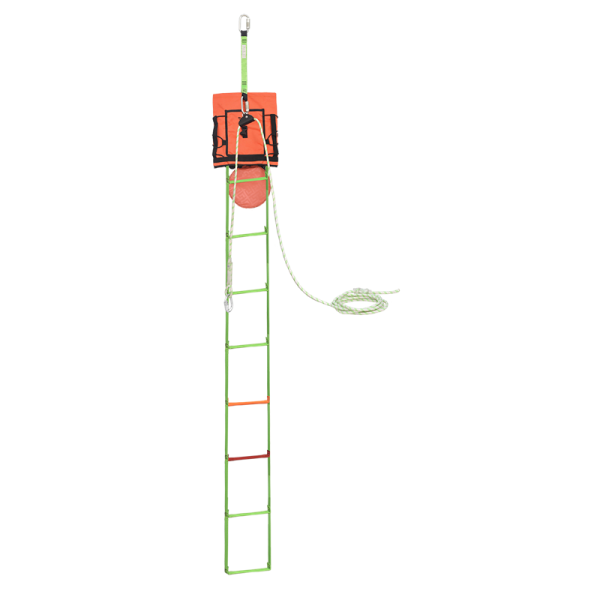

The EVA’LAD 2 Webbing Rescue Ladder is a compact and lightweight rescue and evacuation solution designed for use following a fall from height. Built from durable polyester webbing with aluminium reinforced rungs, it provides a safe means for a non-unconscious casualty to reach a secure location while remaining protected by an integrated belaying system. Quick to deploy and easy to transport, it is supplied with a dedicated carry bag and is intended strictly for rescue operations.
Key Features
• Webbing rescue ladder designed for post-fall evacuation and rescue
• Integrated belaying system for added safety during ascent or descent
• Sliding fall arrester combined with 10 mm kernmantle rope system
• Aluminium reinforced rungs for improved rigidity and durability
• Colour-coded rungs (red and orange) for improved visual orientation
• Compact, lightweight and portable design for rapid deployment
• Supplied with integrated transport bag for easy carrying and storage
• Quick and simple installation on anchor points or structures
• Designed for use by a rescuer assisting a casualty after a fall
Technical Specification
• Product Name: EVA’LAD 2
• Ladder Type: Webbing rescue ladder with integrated belaying system
• Ladder Length: 6 m
• Rope System Length: 7 m
• Ladder Material: Polyester webbing
• Rung Reinforcement: Aluminium (11 mm diameter)
• Rope Material: Polyamide kernmantle rope
• Rope Diameter: 10 mm
• Weight: 3.88 kg
Supplied Components
• 3 x steel karabiners (FA 50 224 18)
• Integrated sliding fall arrester system
• Integrated 7 m kernmantle belay rope
• Transport carry bag
Safety & Design Features
• 6th rung from bottom: red for visual reference
• 7th rung from bottom: orange for enhanced bottom-of-ladder visibility
• Fixed via upper textile loop to anchor point or structure
• Allows controlled ascent or descent while secured by rescuer
• Designed for assisted evacuation only (not for access use)
Compliance
• PPE-R/11.115
• Materials: Polyester webbing, aluminium reinforcement, polyamide rope, steel karabiners
Applications
• Post-fall rescue and evacuation operations
• Industrial rescue systems
• Confined space emergency extraction
• Construction site emergency response
• Work at height incident recovery
• Wind and energy sector rescue support
• Rope access emergency evacuation systems
