Description:

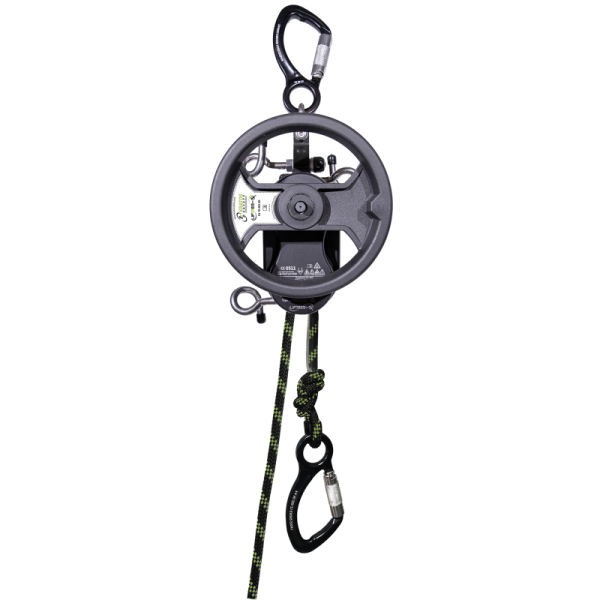

The LIFTRES-Q Evacuation and Rescue Device is a high-performance lifting and descent system designed for safe rescue and evacuation operations at height. Constructed from aluminium alloy and high-strength steel, it incorporates a 9.6 mm semi-static kernmantle rope system for controlled and reliable operation. Suitable for rescue scenarios involving up to two users, it provides smooth, automatic descent and assisted lifting capability in emergency situations.
Key Features
• Professional evacuation and rescue device for lifting and descent operations
• Durable construction using aluminium alloy and high-strength steel
• 9.6 mm semi-static kernmantle rope system
• Automatic and redundant braking system for enhanced safety
• Controlled descent speed between 1.0 m/s – 1.5 m/s (depending on load)
• Suitable for rescue operations up to 225 kg
• Can be used with electric screwdriver for assisted lifting in high ascents
• Supplied with 2 hooks (FA 50 220 21)
• Rope ends fitted with double figure-of-8 knots for secure connection
• Suitable for both evacuation and rescue applications
Technical Specification
• Product Name: LIFTRES-Q
• Device Type: Evacuation and rescue device
• Length: 20 m
• Rope Diameter: 9.6 mm
• Rope Type: Semi-static kernmantle rope
• Rope Material: Aluminium alloy / steel device with rope system
• Maximum User Load: 225 kg
• Maximum Number of Users: 2
• Controlled Descent Speed: 1.0 – 1.5 m/s (depending on weight)
• Maximum Descent Height: 500 m
• Maximum Lifting Height: 500 m
• Brake System: Automatic and redundant
• Inspection Interval: Annually or every 6000 m of rope
Supplied Components
• 2 x hooks FA 50 220 21
• Rope ends with double figure-of-8 knots
Available Configurations
• FA 70 201 20 – 20 m device
• FA 70 201 40 – 40 m device
Compliance
• EN 341:2011-1A
• EN 1496:2017 Type B
• EN 12841:2006 Type C
Applications
• Emergency evacuation from height
• Industrial rescue operations
• Confined space rescue systems
• Wind turbine rescue scenarios
• Construction site emergency response
• Rope access rescue support
• High-rise maintenance evacuation systems
