Description:

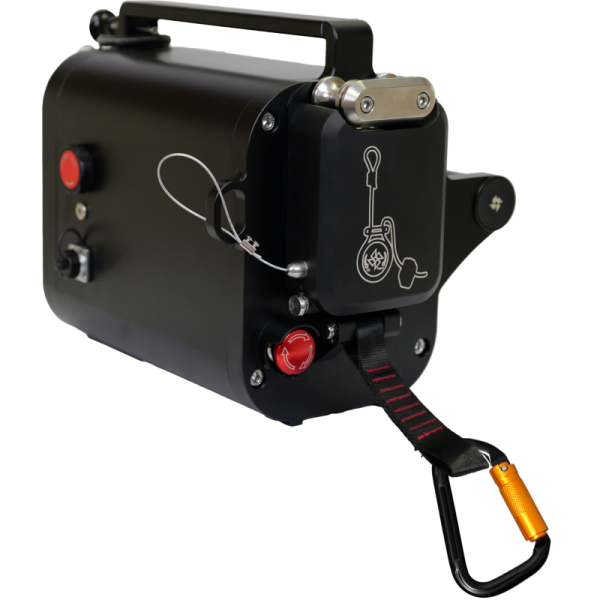

SMART SPIDER MAX Power Winch (IP65)
The SMART SPIDER MAX is a high-performance motorised winch designed for lifting and transporting people or loads in challenging and hard-to-reach environments. Built for maximum versatility, it is suitable for both indoor and outdoor use across industries such as construction, energy, telecommunications, maintenance, confined space work, and rescue operations. With an IP65 protection rating, it delivers reliable performance even in harsh environmental conditions, while advanced remote-control functionality ensures precise and safe operation.
Key Features
• Motorised winch for lifting and transporting people or loads
• Suitable for indoor and outdoor use in demanding environments
• IP65-rated protection for high resistance to dust and water ingress
• Compatible with 10–11 mm semi-static rope (EN 1891 Type A)
• Designed for use with sliding fall arrest systems on rope
• Powerful multi-level planetary gear motor system
• High-capacity rechargeable battery for extended operation
• Remote control via smartphone or tablet (WiFi connection)
• Emergency stop function for immediate shutdown
• Emergency lowering function available even when switched off
• Supplied in wheeled transport case for easy mobility
• Includes charger and battery
Technical Specification
• Product Name: SMART SPIDER MAX
• Device Type: Motorised lifting and transport winch
• Protection Rating: IP65
• Maximum Load: 200 kg
• Rope Compatibility: 10–11 mm semi-static rope (EN 1891:1998 Type A)
• Maximum Ascent Speed: 0 – 22 m/min
• Maximum Descent Speed: 0 – 30 m/min
• Battery Range: Up to 450 m (100 kg load)
• Maximum Operating Altitude: 2000 m
• Charging Time: 140 minutes
• Weight: 14.5 kg
• Control System: WiFi (smartphone/tablet control)
• Signal Range: Up to 40 m
Safety Features
• Emergency stop button integrated
• Emergency descent function independent of power supply
• Controlled lifting and lowering system for safe operation
• Designed for use with certified fall arrest systems
Compliance
• Machinery Directive 2006/42/EC
• Electromagnetic Compatibility Directive 2014/30/EU
• Radio Equipment Directive 2014/53/EU
• Low Voltage Directive 2014/35/EU
• HS Code: 84253100
Applications
• Confined space entry and rescue operations
• Industrial maintenance and inspection
• Construction site lifting operations
• Telecommunications tower access
• Energy sector maintenance work
• Window and façade cleaning systems
• Pruning and arborist operations
• Emergency evacuation and rescue support
• Load transport in restricted access environments
