Description:

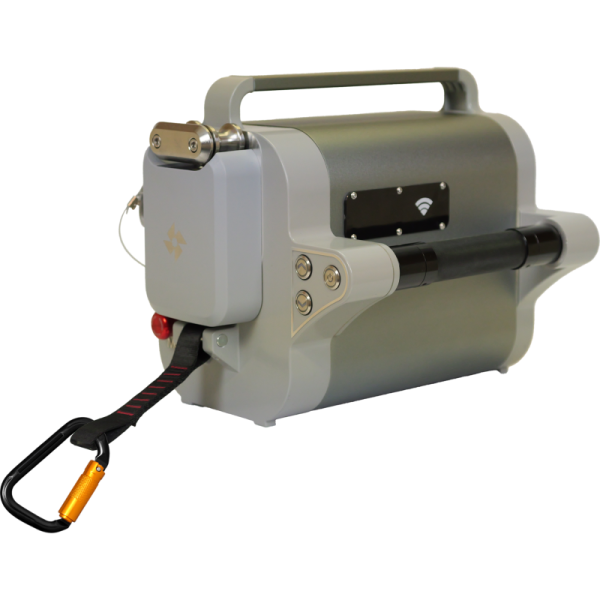

The SMART SPIDER PRO is a motorised power winch designed for the safe lifting and transport of people and loads in hard-to-reach or complex working environments. Built for versatility across industrial, construction, maintenance, rescue and confined space operations, it features a robust IP54-rated design for reliable performance in both indoor and outdoor conditions. Controlled via smartphone or tablet, it delivers precise lifting and lowering with advanced safety and emergency control functions.
Key Features
• Motorised winch for lifting and transporting people or loads
• Suitable for indoor and outdoor use in demanding environments
• IP54 protection rating for dust and water resistance
• Compatible with 10–11 mm semi-static rope (EN 1891 Type A)
• Designed for use with sliding fall arrest systems on rope
• Powerful multi-level planetary gear motor
• High-performance rechargeable battery system
• Remote control via smartphone or tablet (WiFi connection)
• Emergency stop function for enhanced safety
• Emergency lowering available even when device is switched off
• Supplied in wheeled transport case for easy mobility
• Includes charger and battery
Technical Specification
• Product Name: SMART SPIDER PRO
• Device Type: Motorised lifting and transport winch
• Maximum Load: 200 kg
• Rope Compatibility: 10–11 mm semi-static rope (EN 1891:1998 Type A)
• Maximum Ascent Speed: 0 – 22 m/min
• Maximum Descent Speed: 0 – 30 m/min
• Battery Charging Time: 140 minutes
• Battery Range: Up to 450 m (100 kg load)
• Maximum Operating Altitude: 2000 m
• Weight: 14.5 kg
• Protection Rating: IP54
• Connectivity: WiFi control (range up to 40 m)
Supplied Components
• Double-action aluminium karabiner
• Rechargeable battery
• Battery charger
• Wheeled transport case
Safety & Compliance
• Emergency stop button integrated
• Emergency descent function available without power
• Designed for controlled lifting and lowering operations
Compliance
• Machinery Directive 2006/42/EC
• Electromagnetic Compatibility Directive 2014/30/EU
• Radio Equipment Directive 2014/53/EU
• Low Voltage Directive 2014/35/EU
• HS Code: 84253100
Applications
• Confined space lifting and access
• Industrial maintenance and inspection
• Construction site lifting operations
• Telecommunications tower work
• Window and façade cleaning systems
• Energy sector maintenance tasks
• Pruning and arborist operations
• Rescue and evacuation operations
• Load transport in restricted access areas
