Description:

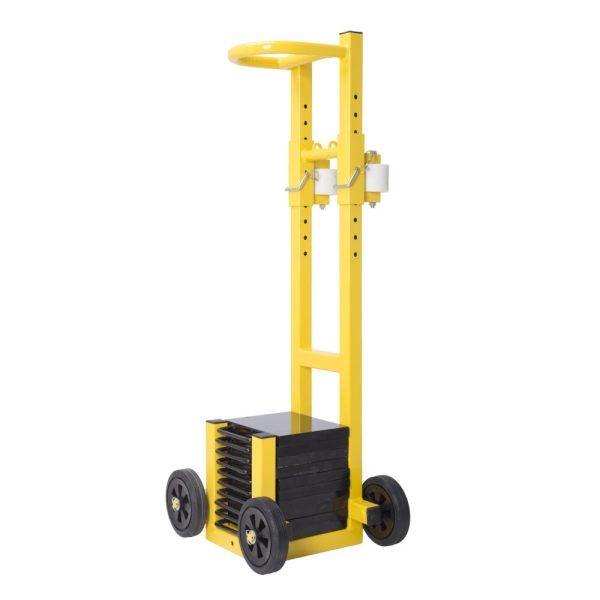

The DW 100 Window Trolley is a mobile anchorage device designed to secure one or two users when working at height. Built with a stable weighted base and robust steel construction, it provides a reliable temporary anchoring solution for window and façade-related work.
Key Features
• Mobile anchorage point for work at height
• Suitable for up to 2 users
• Durable galvanized steel construction
• Powder-coated finish for added protection
• Stable base with weighted system
• Designed for temporary and flexible use
Technical Specification
Anchor Point
• Material: Galvanized steel
• Finish: Powder-coated
• Dimensions: 1470 x 610 x 524 mm
• Static Strength: 13 kN
• Catch Point Bore Diameter: Ø 12.7 mm
• Max Users: 2
Weights
• Dimensions (each): 250 x 300 x 30 mm
• Weight (each): 18 kg
• Material: Steel
• Number of weights: 10 pcs
• Total Weight: 208 kg
• Frame Weight: 28 kg
Applications
• Window installation and maintenance
• Façade and glazing work
• Fall protection systems
• Construction and refurbishment projects
• Temporary anchorage for work at height
